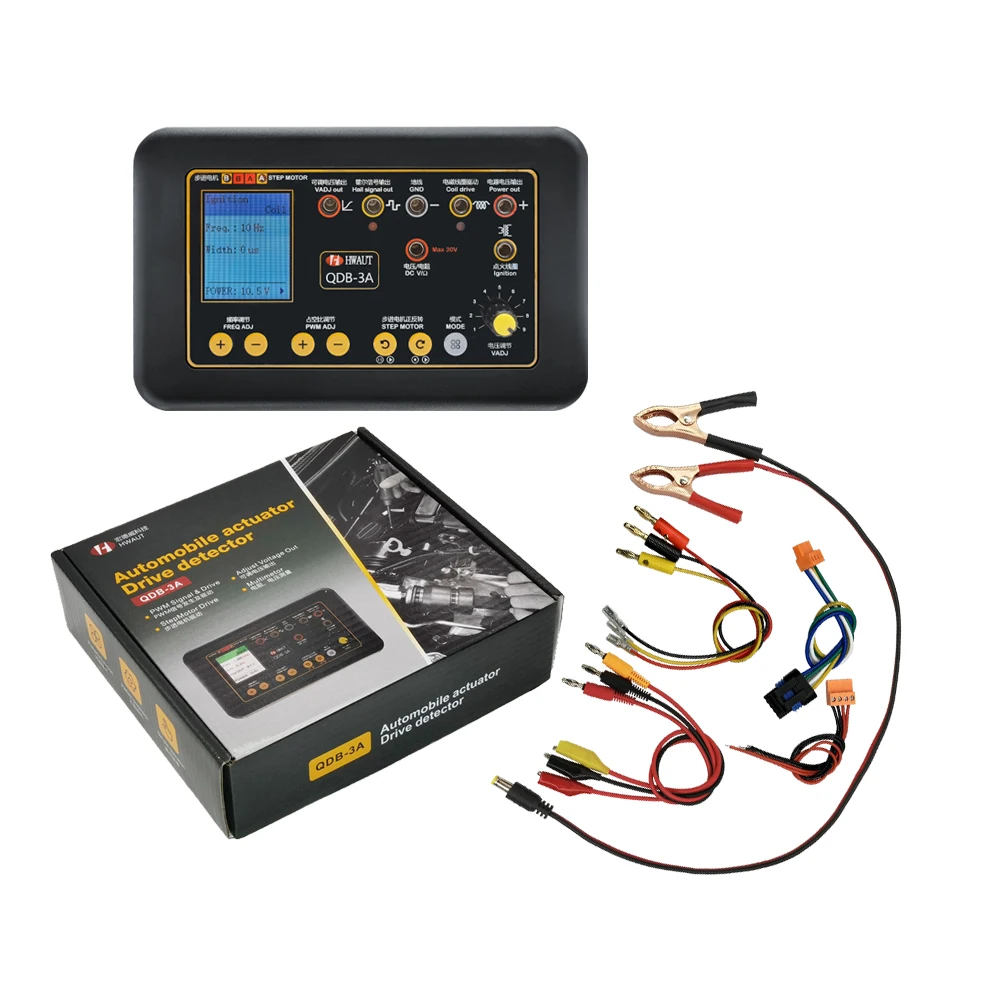

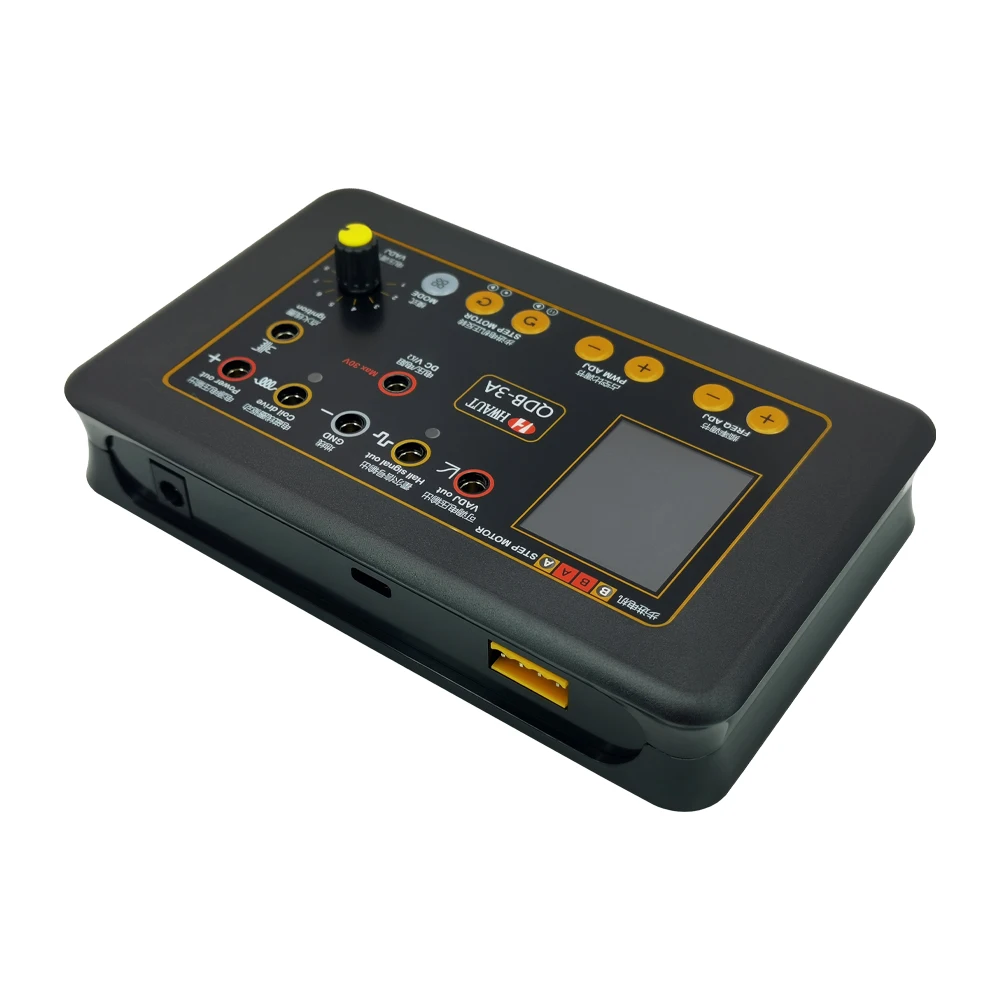

QDB 3A Auto Spark Ignition Coil Tester Test Electronic Throttle IAC Valves High COP Coils Injectors FID Valves Diagnostic Tool

PWM Signal Drive Automobile Ignition Coil Tester Solenoid Valve CR Pump Metering Unit Step Motor Electric Throttle Instrument

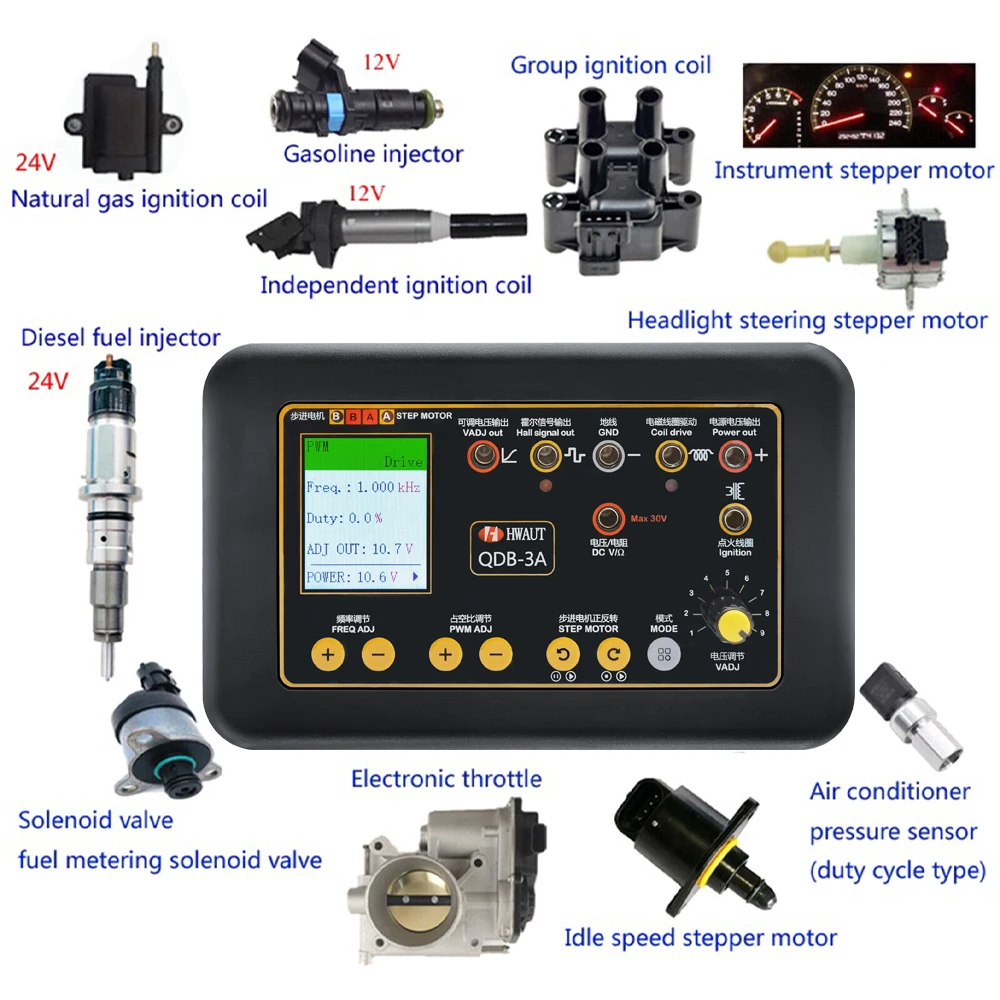

Test Electronic Throttle, IAC Valves, High COP Coils, Injectors FID Valves

Product Features:

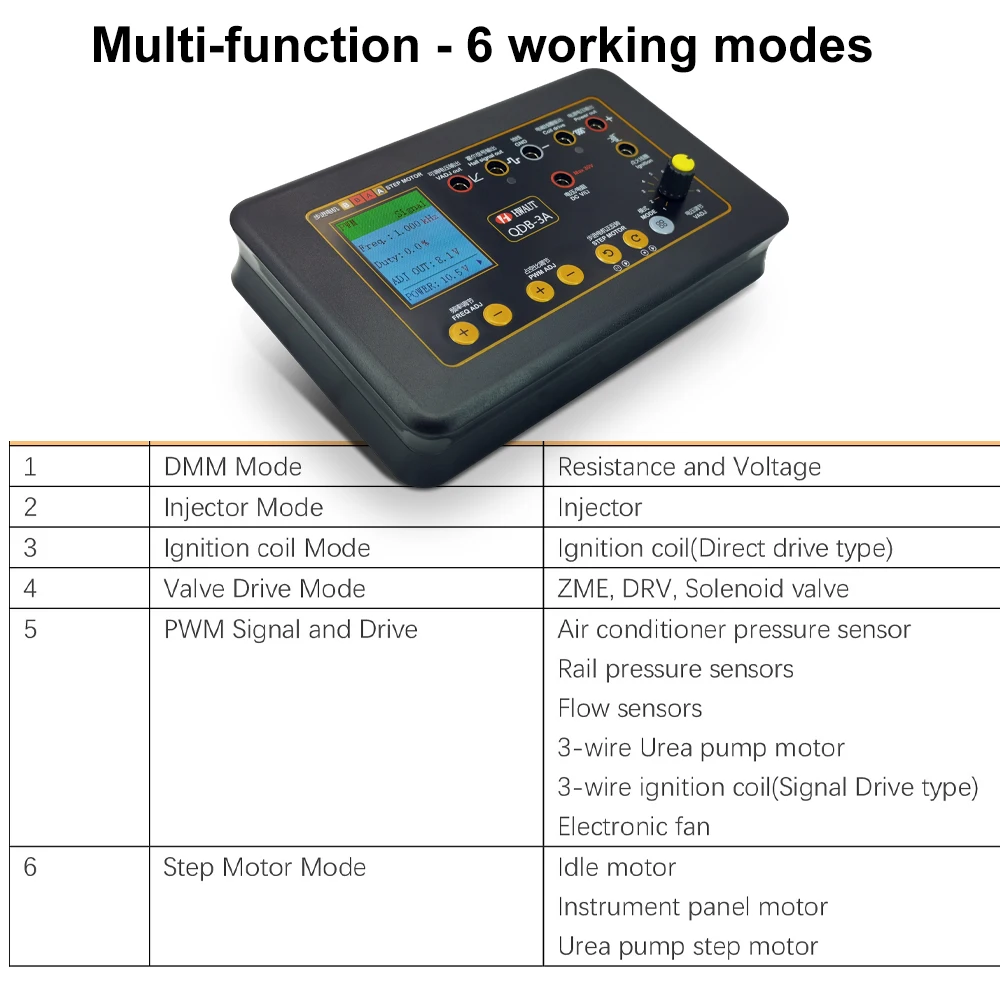

Product Main Functions:
1.Drive test ignition coil:including independent ignition,coil type,Module Type.
2.Drive test fuel injector:including gasoline-powered car 12V fuel injector,diesel vehicle 12V 24V fuel injector.
3.Drive and test solenoid valves and fuel metering valves controlled by various duty ratios.
4.Drive and test motors controlled by various duty ratios,urea pump motors,etc.

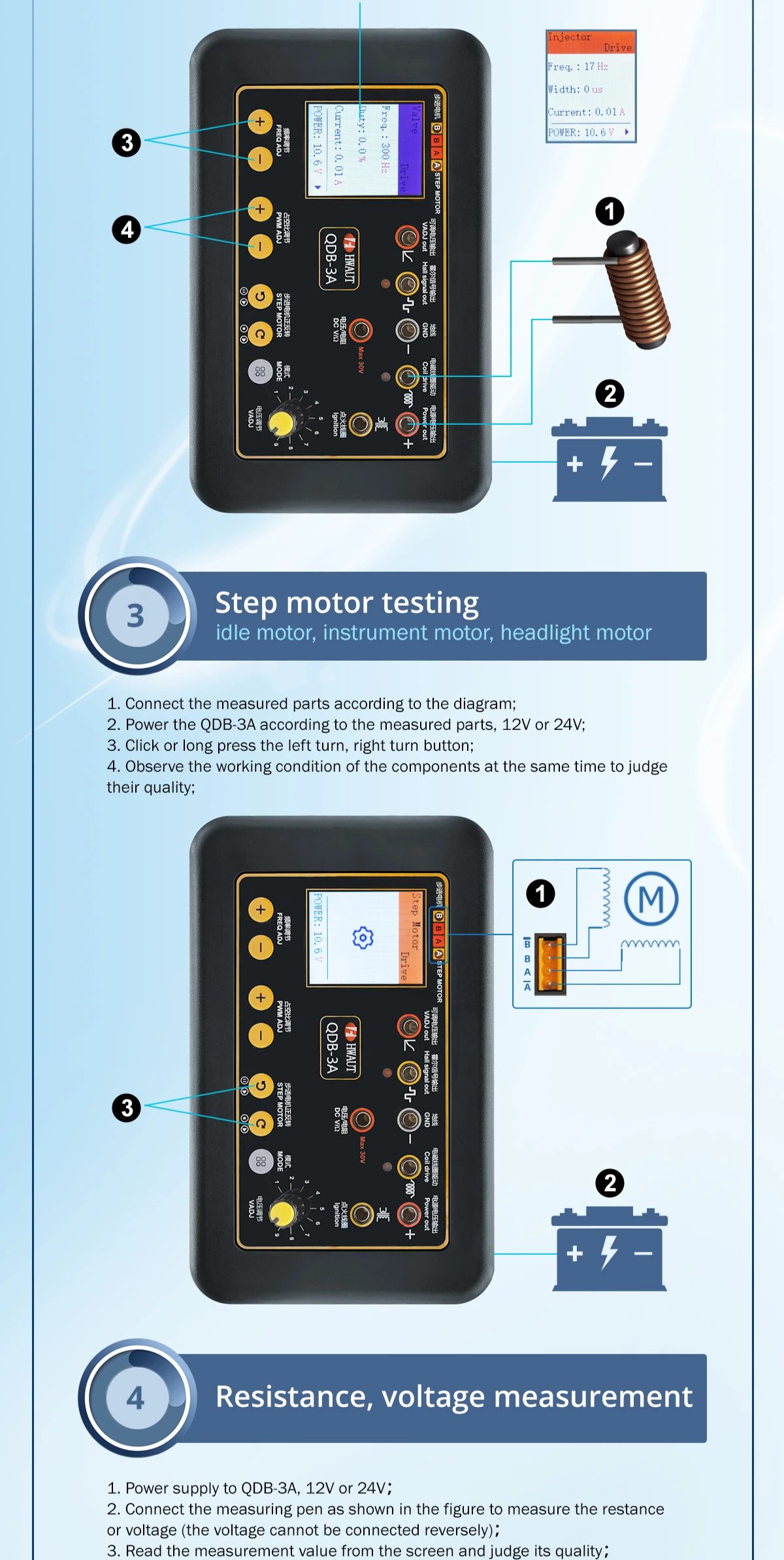

5.Drive and test idle stepping motors,instrument stepping motors,headlight follow-up steering stepping motor and so on.
6.Hall signal with adjustable output frequency,amplitude and duty ratio.Used to simulate various duty cycle sensors,such as air
conditioning pressure sensor(duty cycle type),
air flowmeter(duty cycle type),etc.

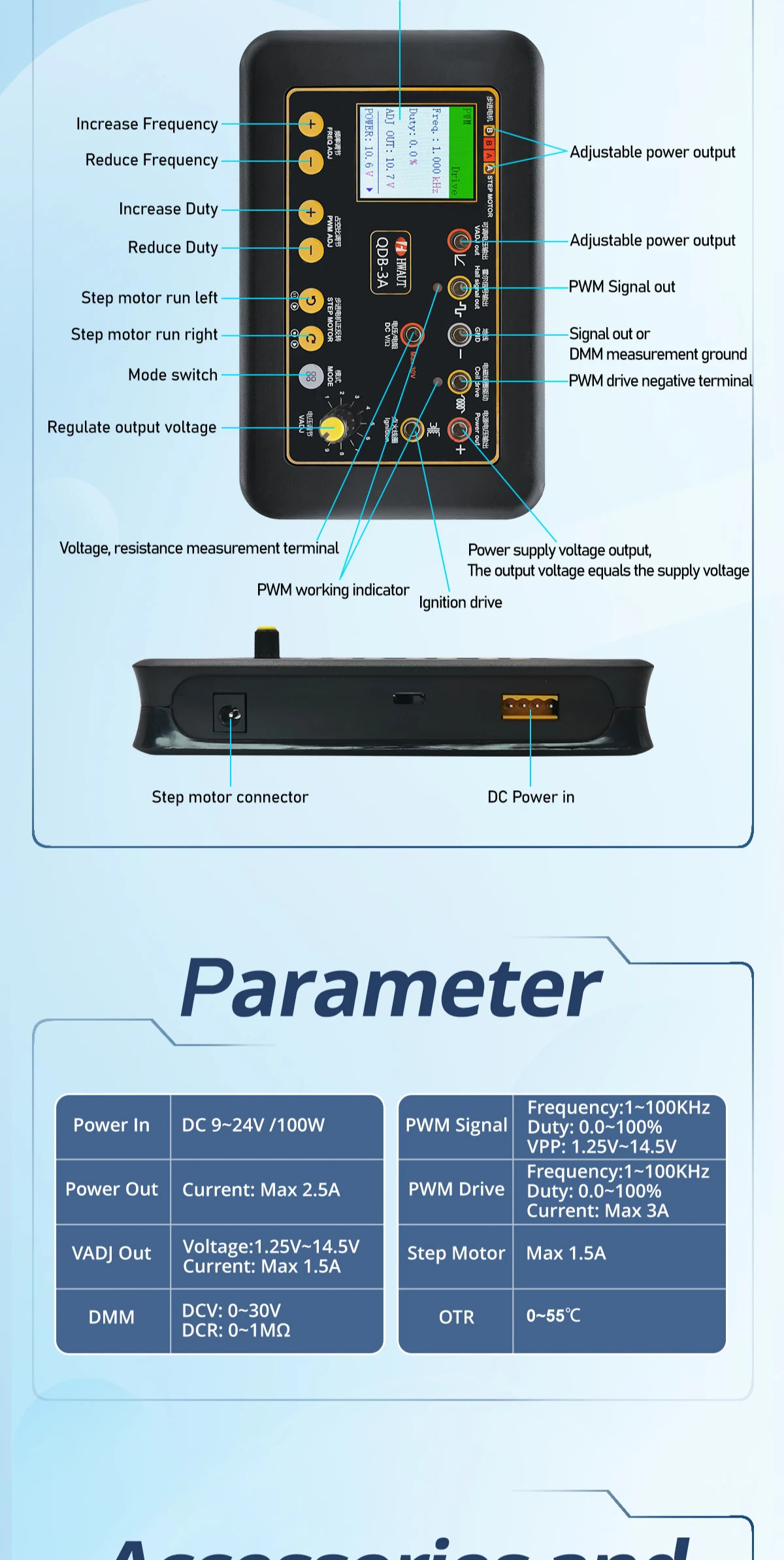

7.Power supply voltage range:12V-24V,with reverse connection protection,overcurrent protection.
8.Electromagnetic coil driving current range:0-3.5A
9.Output frequency range:1HZ-100KHZ
10.Duty cycle adjustment:1%-100%
11.Adjustable voltage:1.25V-11.5V
